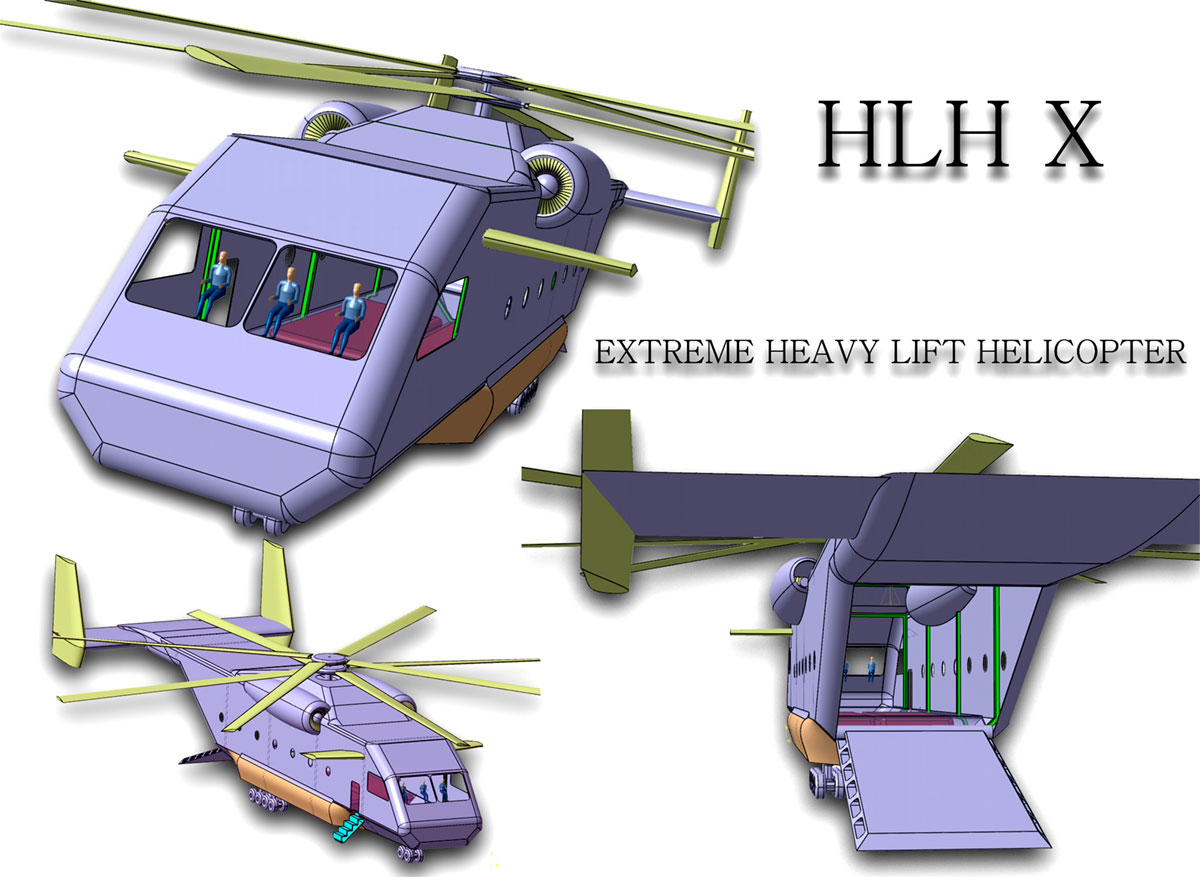

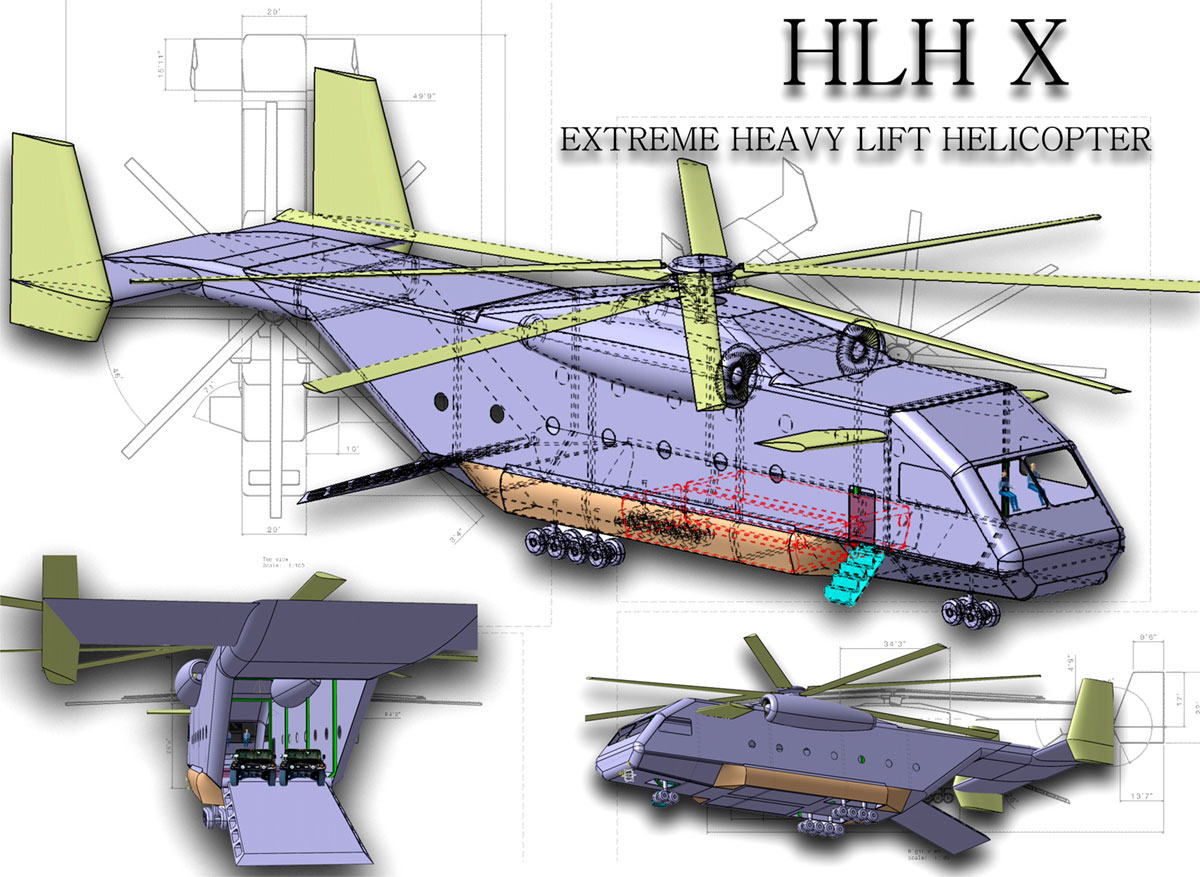

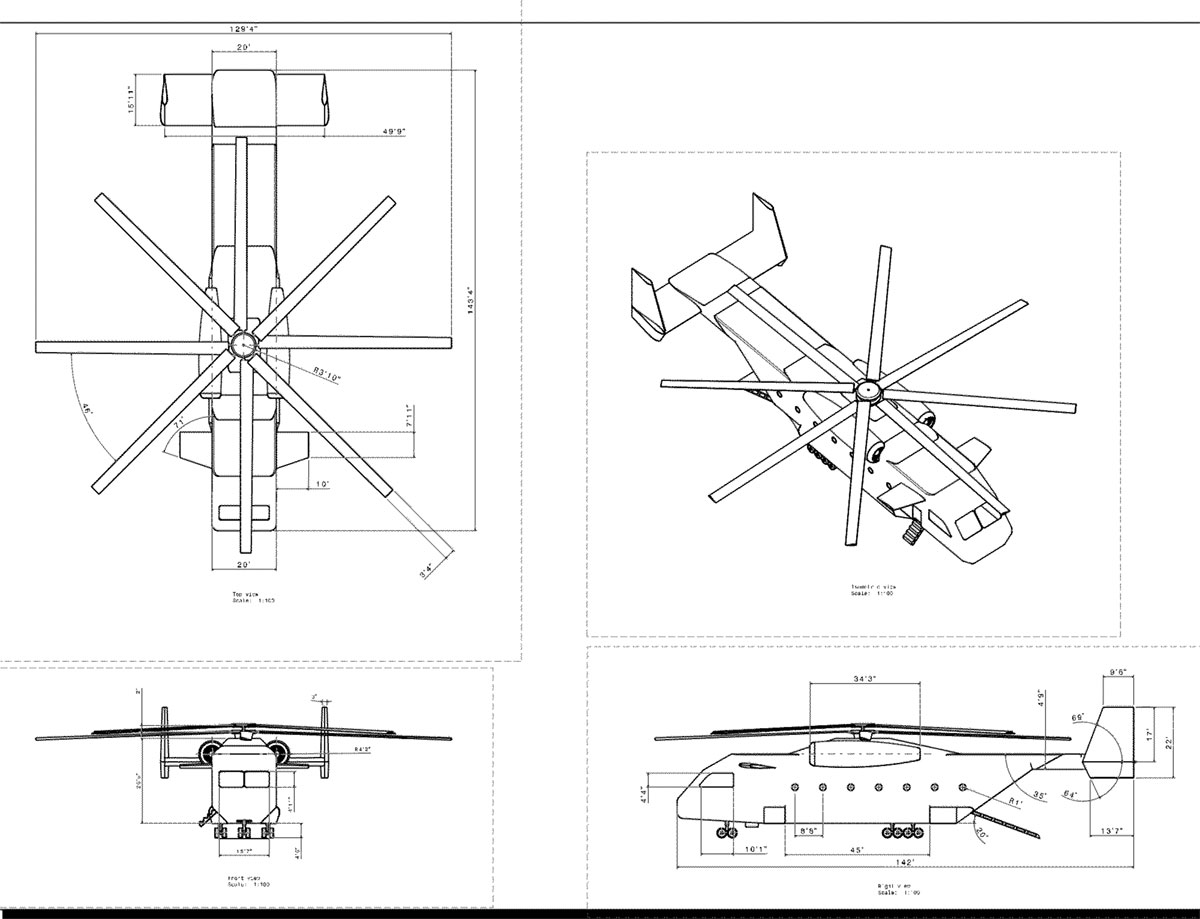

My first attempt at a design using Catia V5. The concept is a coaxial compound helicopter. Coaxial meaning 2 counter rotating rotors aligned axial for moment cancellation. This helicopter is a behemoth fitting 2 hummers side by side in the cargo bay. Click on the picture for larger images ... |
